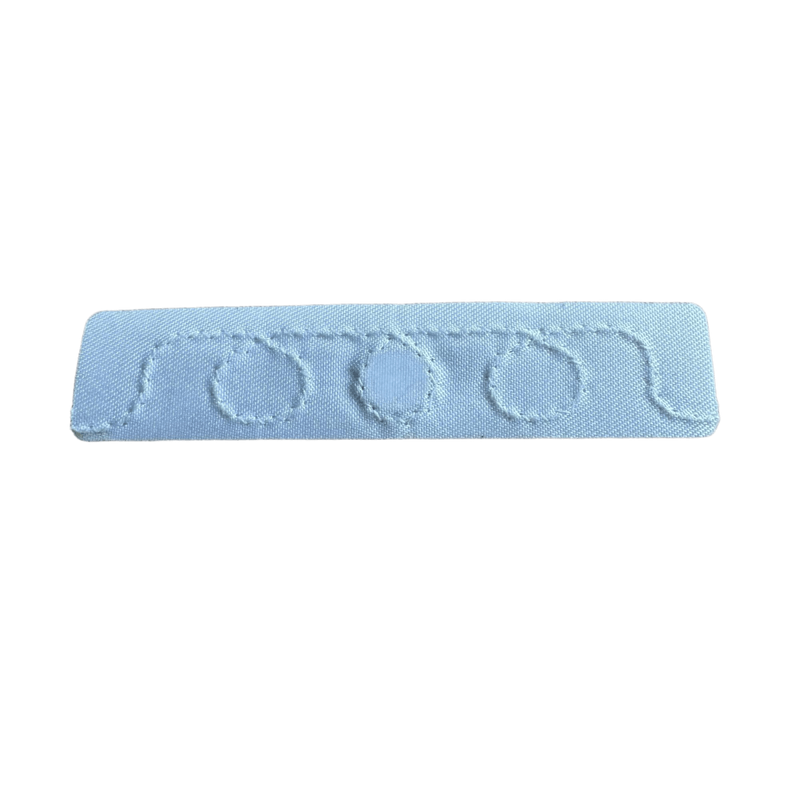

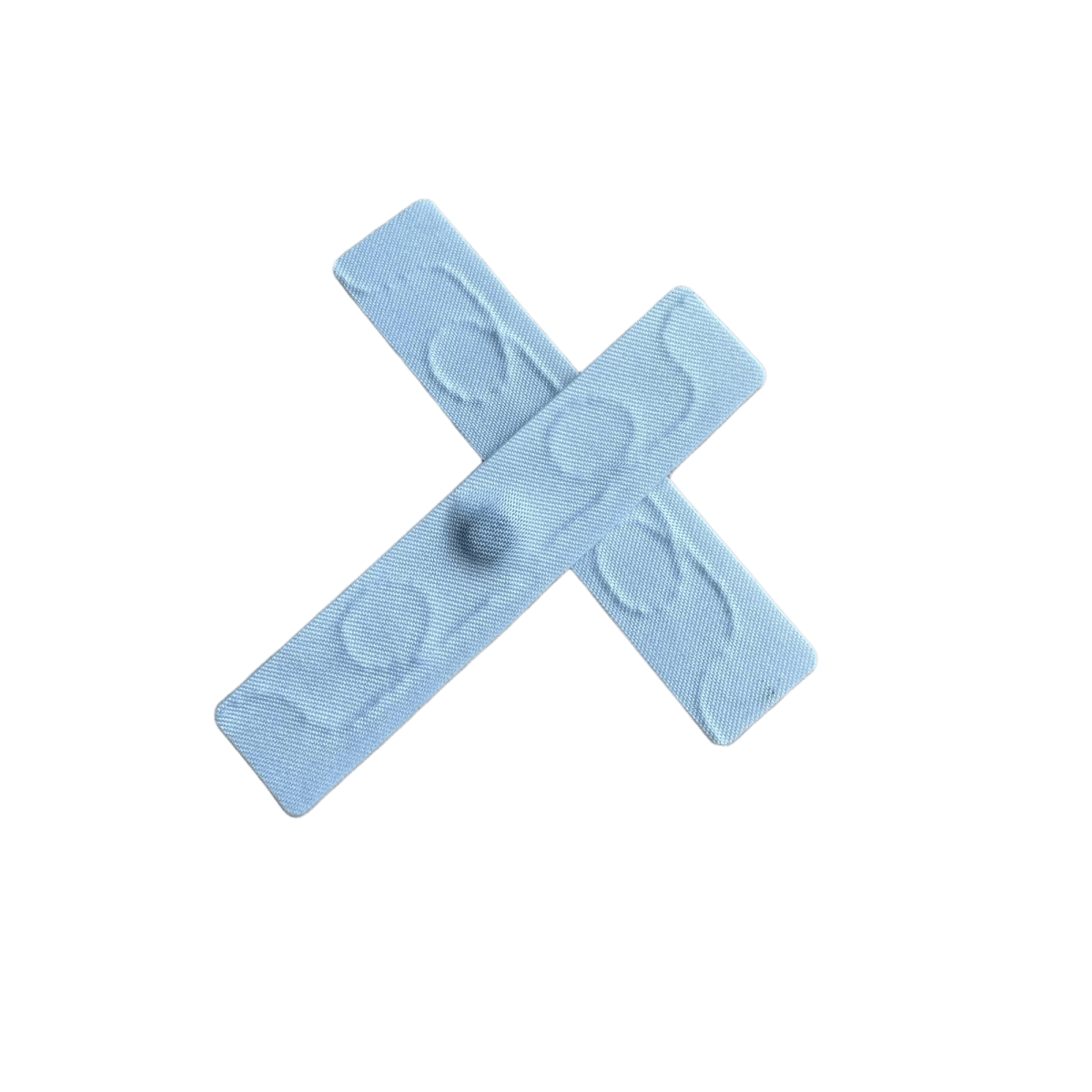

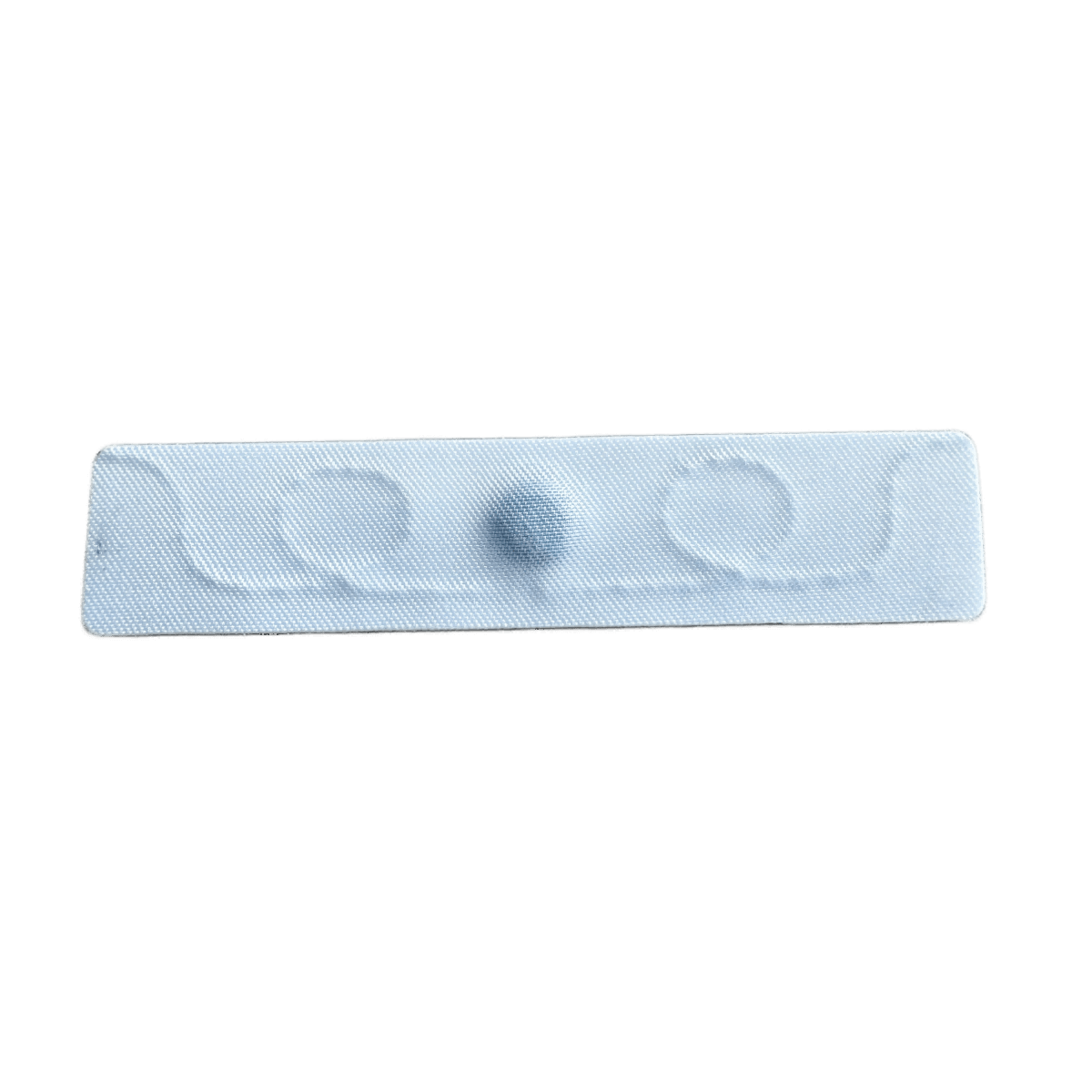

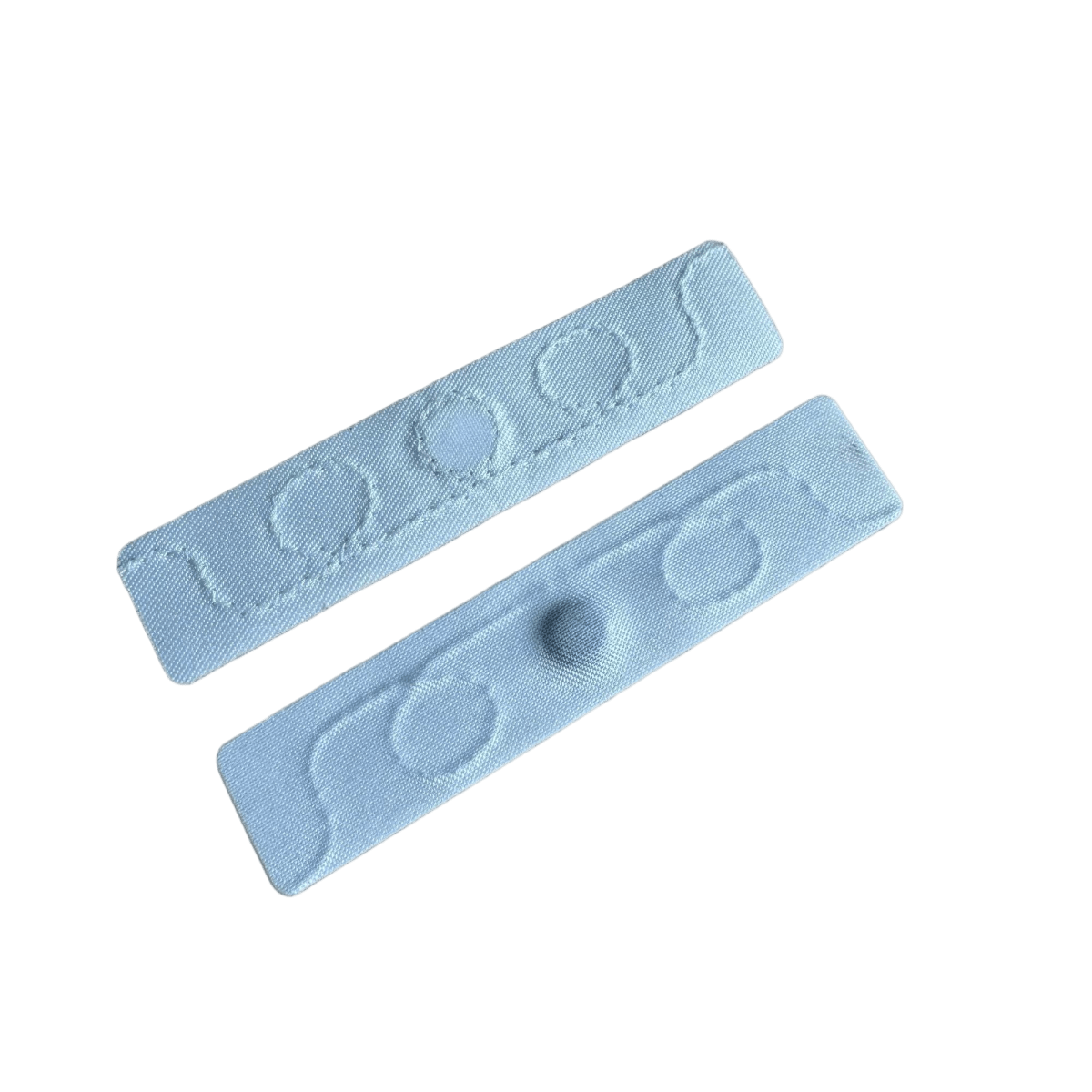

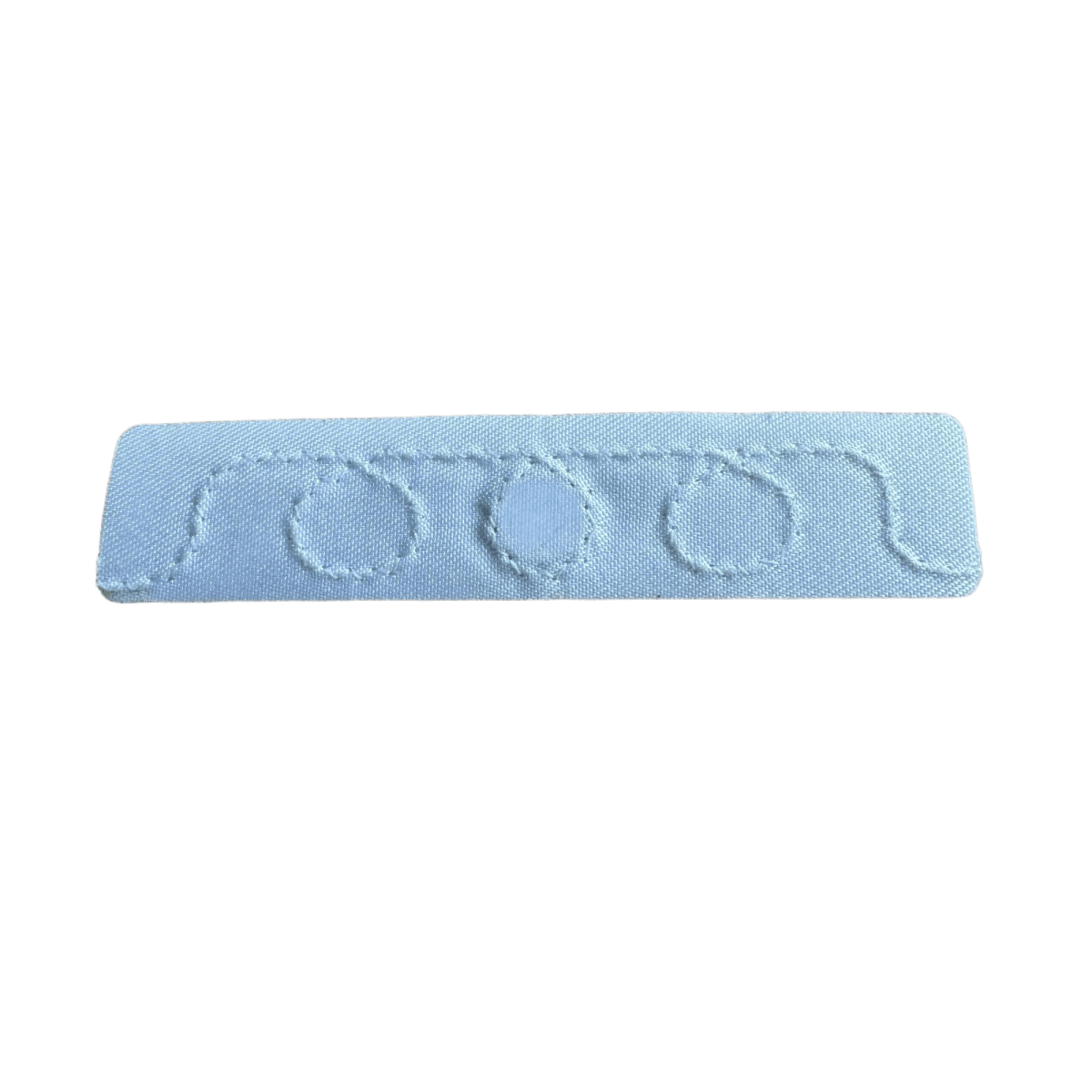

Dual Frequency Laundry Tag

JYL-Tech has risen to the occasion by developing a range of dual-frequency washable RFID laundry tags that incorporate both UHF RFID and NFC . These hybrid apparel RFID laundry tags are engineered to withstand years of washing and use throughout the product's lifecycle, all while ensuring brand protection and enhancing the end-user experience.

JYL-Tech has successfully executed numerous projects involving dual-frequency washable laundry tags for high-end European fashion brands, delivering outstanding RFID performance that can withstand hundreds of household wash cycles and even up to two years of industrial laundry, per the brand owner's request.

Availability:



Inquiry

Product Description

MAIN FEATURES：

Item:	Dual-Frequency Washable RFID laundry Tags
Protocol:	UHF:ISO\IEC 18000-6C, EPC Global GEN2 V2.0 HF: ISO\IEC 14443 TYPE A; NFC: FORUM TYPE2
Working Frequency:	860-960 MHZ & 13.56MHz（worldwide）
Memory:	160 bits or 256 bits of EPC for UHF 96 bits or 128 bits of TID for UHF Up to 2K bits of User for UHF and HF
Material:	Polyester
Dimensions:	70 x20 mm（2.7x0.8 in）or Customization Sizes
Read Range:	Fixed Reader: 3.8 m(12.5 ft), on clothes; 4.2 m(13.8 ft), in air Handheld Reader: 1.6 m(5.0 ft), on clothes; 2.0 m(6.6 ft), in air
Washing Method:	Laundry, Dry cleanin
Warranty:	200 washing cycles or 2 years, whichever comes first

Applications of Washable Laundry Tag

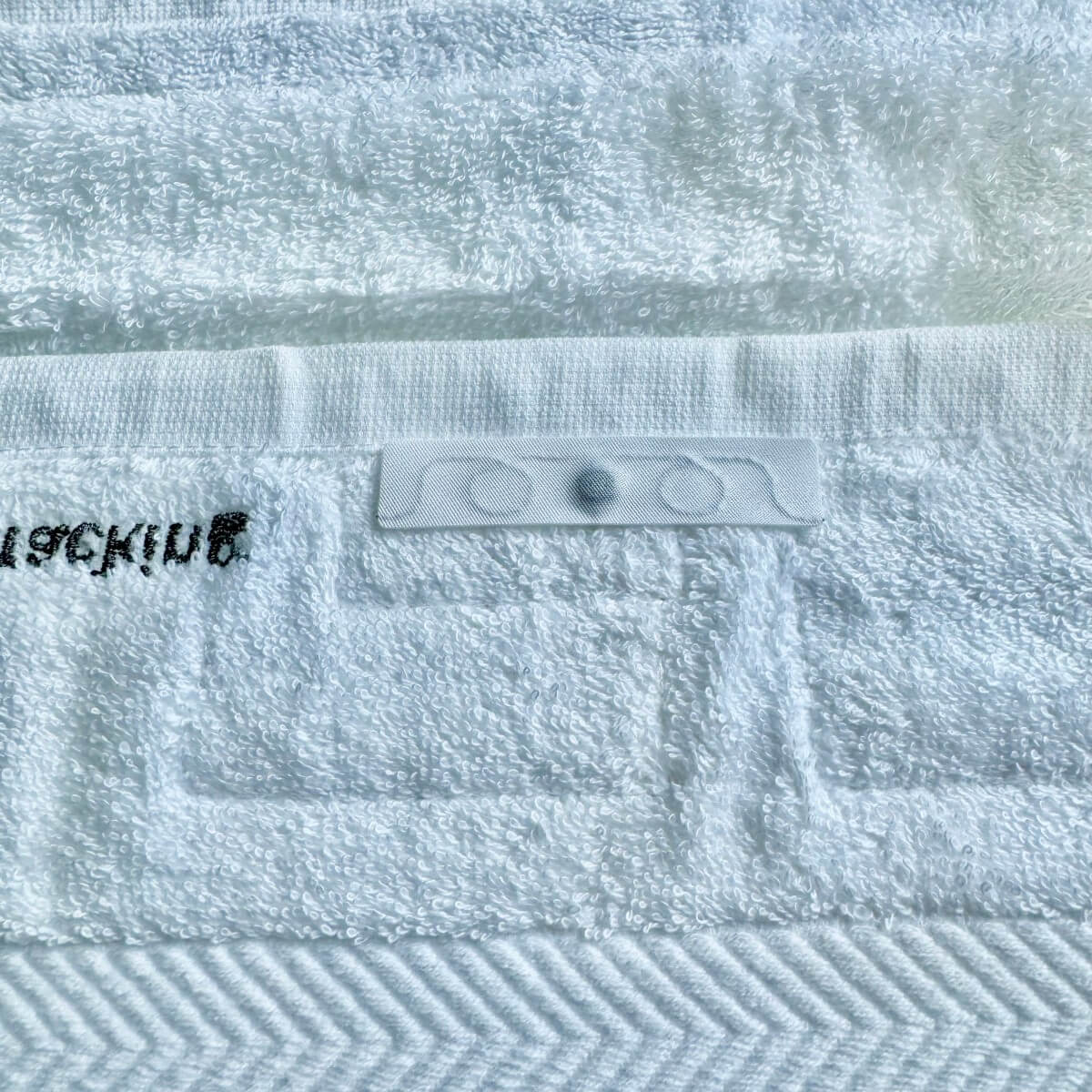

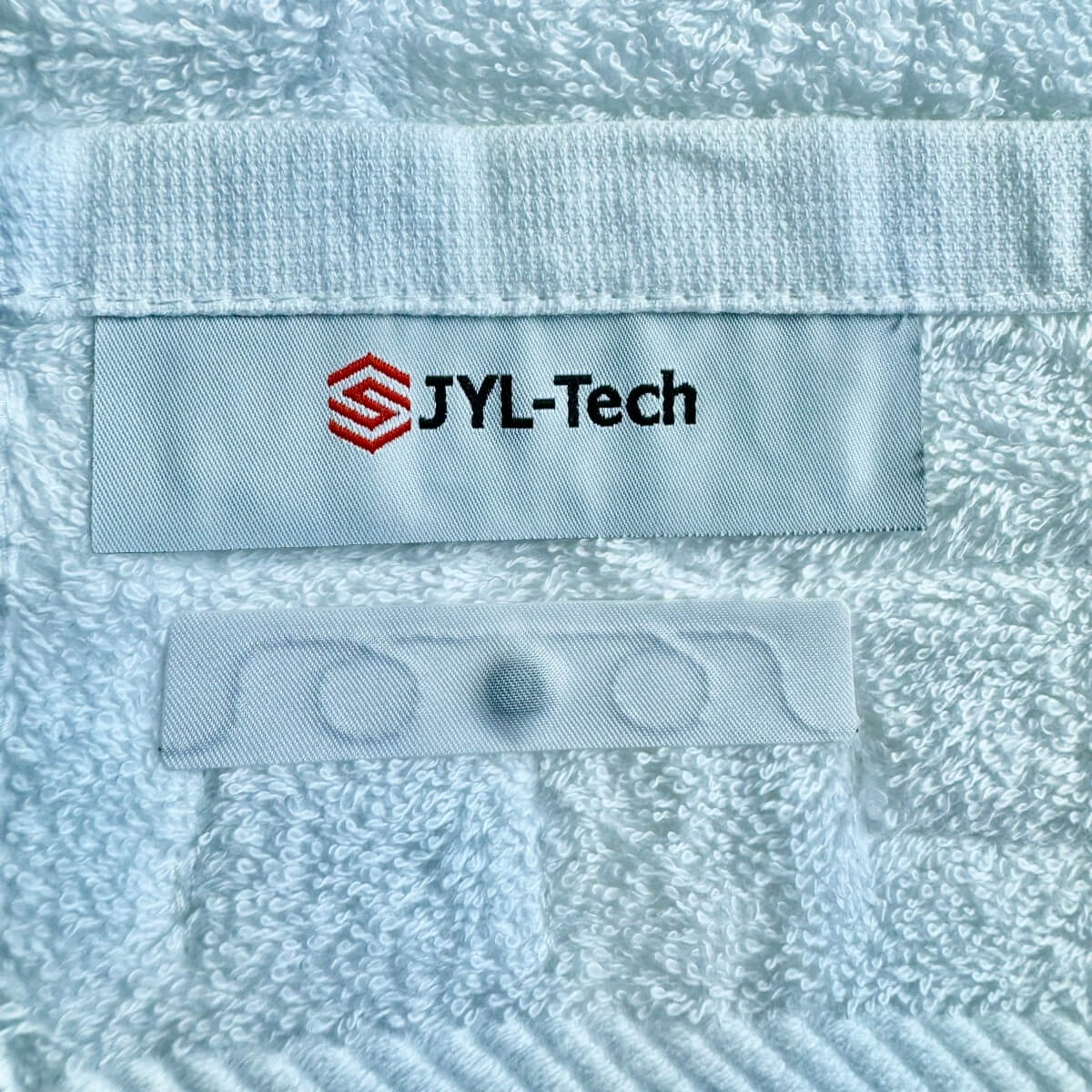

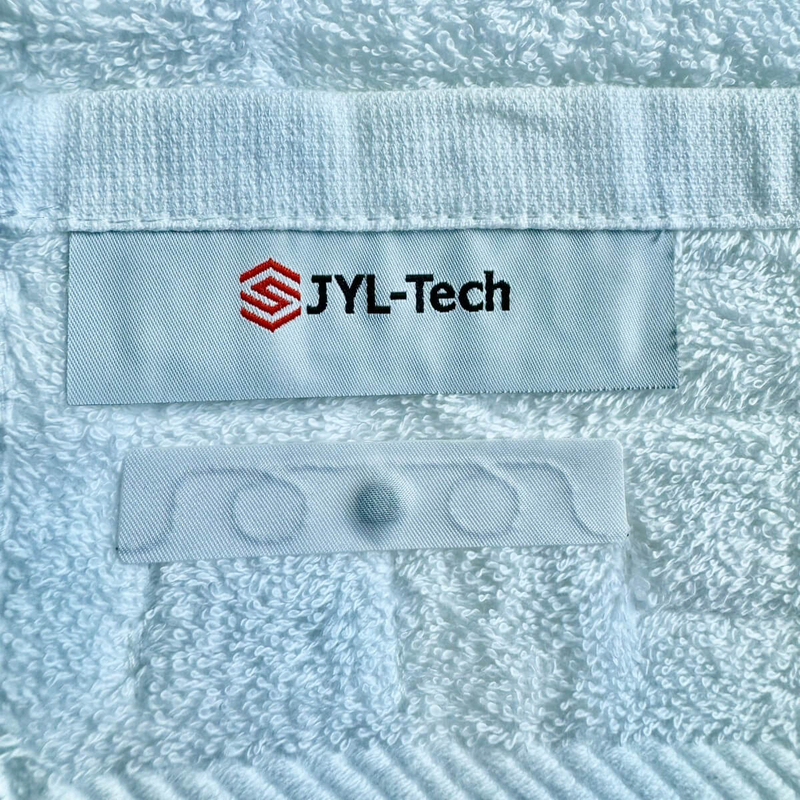

Hotel linen management
Hospital linen tracking
Restaurant tablecloth and napkin control
Gym towel management
Spa and wellness center robes and linens
Uniforms and workwear tracking
Industrial laundry services
Linen Producer

JYL-Tech is a Pioneer in RFID Laundry Tags - JYL-Tech has established itself as a frontrunner in delivering cutting-edge RFID laundry transponders tailored for diverse applications like uniforms and workwear. Leveraging its profound expertise in RFID technology, JYL-Tech is dedicated to crafting inventive RFID washable tags that empower businesses to streamline their operations and bolster their bottom line.

JYL-Tech Fabric RFID Laundry Tag Datasheet JYL-FLD7020.pdf
